System Design 1 - Chapter 3

30 April 2025, Bastian Luettig

Markov Analysis

Assess a systems state based on its components states

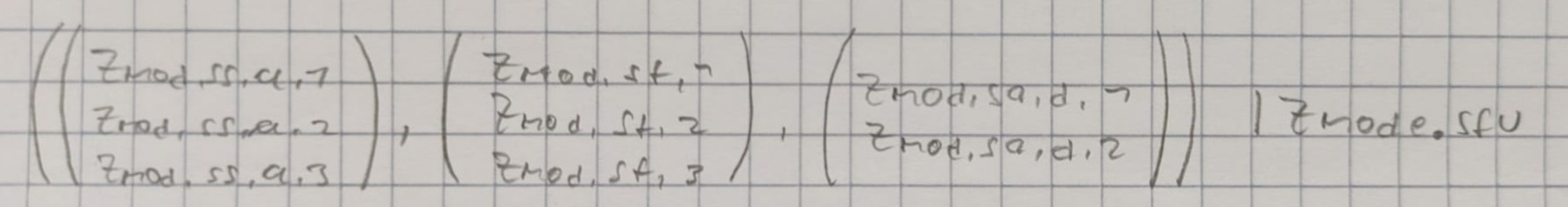

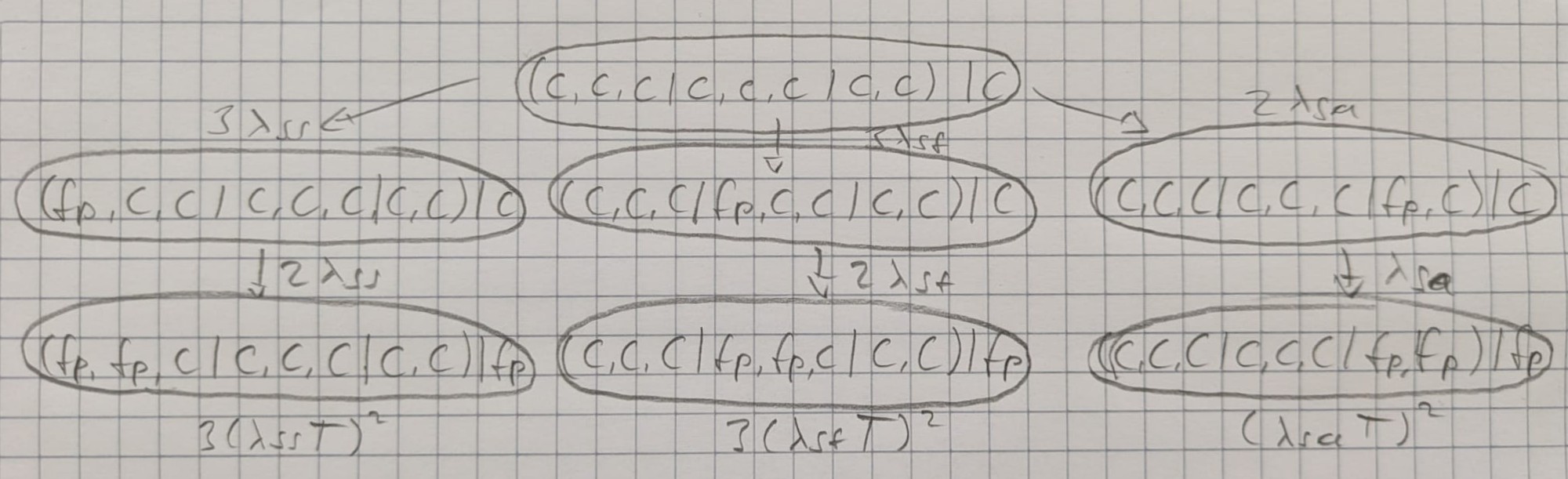

Markov Tree You should know this for the exam

In general, we assume a strictly-fail-passive operated component (i.e. sensors and computers) with redundancy degree $r$:

$$P(\mathbb{Z}_{\text{fp,mod,k}}) = r \cdot (\lambda T)^{r-1}$$

For other components $K$ (that support simplex operation) in redundancy degree $r$:

$$P(\mathbb{Z}_{\text{fp,mod,k}}) = (\lambda T)^{r}$$

Redundant Platoform Development

Finding redundancy degree

Sensors and Computers

• Integrity: we need a redundancy degree $r = 2$ to ensure best fault detection; hence: avoid $f_O$
• Reliability: we need a redundancy degree $r \ge 2$ to ensure $P(\mathbb{Z}_{\text{fp,mod,k}})$ meets the requirement

Actuators

• Integrity: we want a redundancy degree $r = 1$ to suffice to avoid $f_O$
• Reliability: we need a redundancy degree $r \ge 1$ to ensure $P(\mathbb{Z}_{\text{fp,mod,k}})$ meets the requirement

Analytical Redundancy for Actuators

• To ensure integrity with $r = 1$, analytical redundancy is implemented in the form of a digital twin that the computer executes during runtime.

Step 1:
Develop platform architecture based on signal requirements fromYRD Result: Simplex platform architecture
Step 2:
Develop platform architecture based on state requirements fromYRD Result: Redundant platform architecture

System Design: Redundant Computers

Integrity: Quadruplex Computer, remember valid states from earlier this chapter. States to analyze: byzantine fault in quadruplex, byzantine fault in triplex, double fault in quadruplex. Other states are not minimal cut sets.

• no byzantine faults will lead to out-of-control in quadruplex mode R-YDD-6
• byzantine faults in triplex (after one passive loss) may occur R-YDD-7
• double faults lead to out-of-control R-YDD-8
• the overall out-of-control probability is $< 4 \cdot 10^{-10}$

System Design: Redundant Sensors

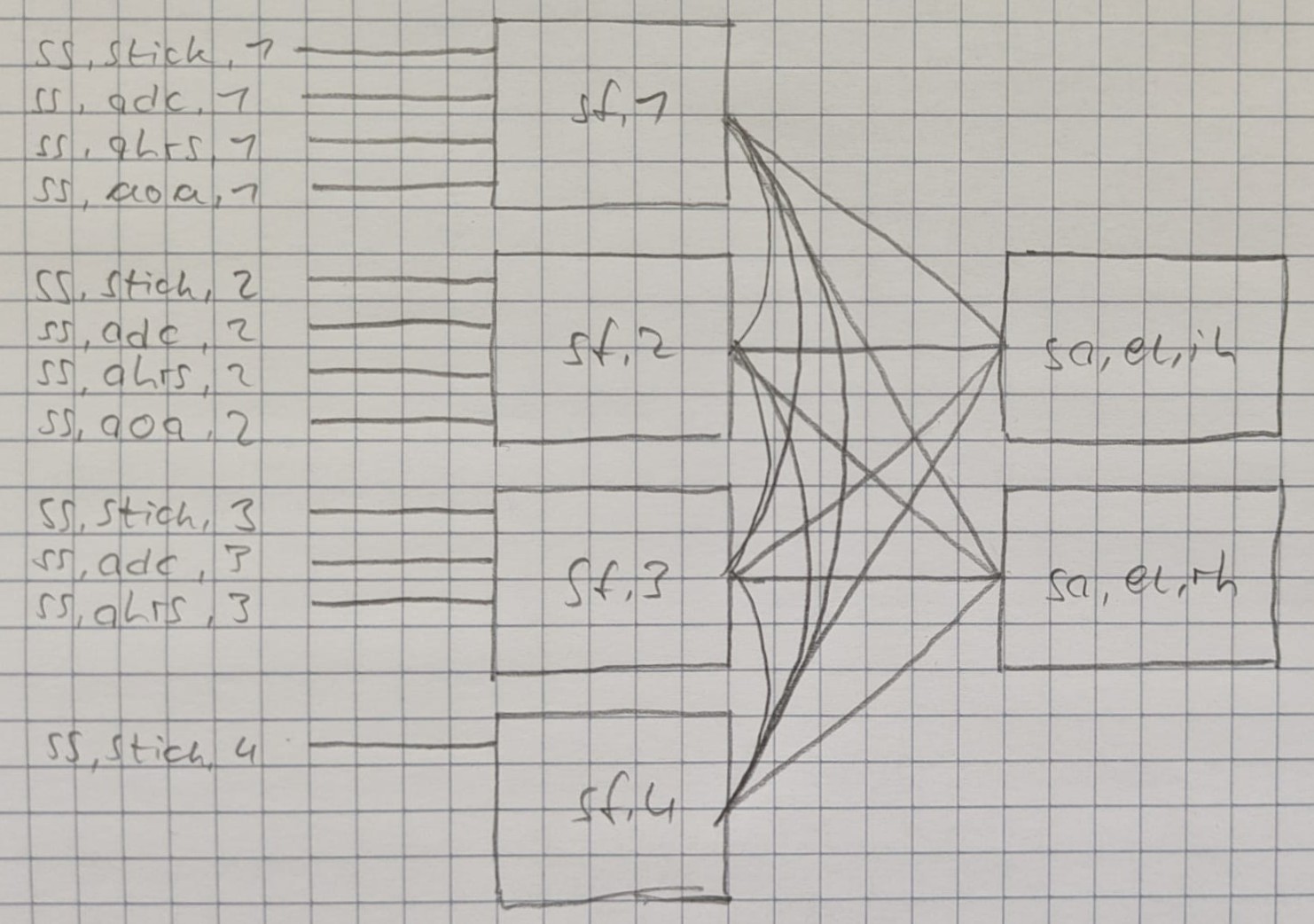

Computers read sensor data, hence sensors have to connect to computers. This is generally referred to as ”strapping”. Within this lecture, we have 1:1 strapping and cross-strapping.

1:1 Strapping: Each sensor connects to a single computer, i.e. has only one connection
Cross strapping: Each sensot connects to each of the single computers, i.e. it has four connections in case of quadruplex redundant computers

Flight stick

• The stick sensor connects only to a single computer lane.
• This means the sensor fails whenever a computer lane fails.
• The lanes fails with 1 · 10−4 h−1 and thus dominates the sensor failure.
• This will not suffice! (P (Zfp,mod,rf ) = 3 · 10−8)
• Why? Rules of thumb apply to cross-strapped components.
• At least 4 sensors (same reliability as for redundant computer)

Redundant Actuators / Elevators

We try to tackle the out-of-control case by digital twins (analytical redundancy). Each law needs at least one elevator actuator. Passive failure of direct law is the most stringent requirement.

Development results

• We found an initial redundant platform architecture.
• We used rules of thumb and ignored more complex connection / interactions
• Next step: validate the developed architecture

Platform Validation

We did not consider:

• combined computer lane and sensor failures

• the failure budget must account for all passive failures

• how to meet the out-of-control budget for actuators

• validation: loss of direkct law

• validation: loss of alternate law

• validation: loss of normal law

conclusion

• State-Transfer-Functions for modules
• Redundant Computer Behavior
• Redundant Sensor Behavior
• Redundant Actor Behavior
• Simplified Markov-based Safety Assessment
• Actual Redundant Platform Development
• Redundant Platform Validation
